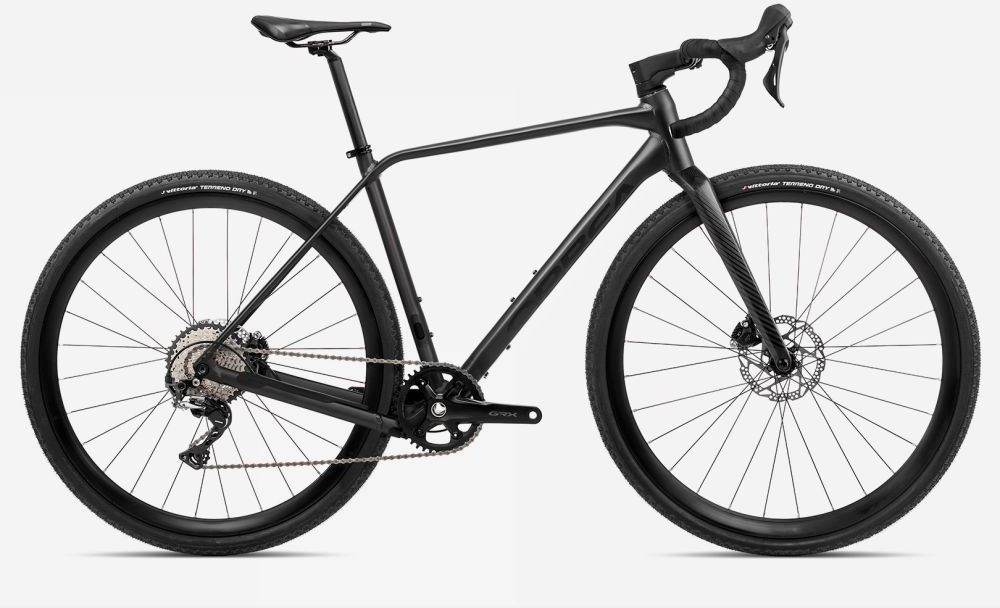

Orbea Terra H30 1X
This item is currently not available.
Details
Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun. Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.
| X-Small | Small | Medium | Large | X-Large | XX-Large | |
|---|---|---|---|---|---|---|
| 11 - SEAT TUBE (C-T) | 425 | 458 | 491 | 524 | 557 | 590 |
| 22 - TOP TUBE (EFF) | 526 | 539 | 558 | 570 | 590 | 603 |
| 33 - HEAD TUBE | 110 | 131 | 152 | 178 | 199 | 220 |
| 44 - CHAINSTAY | 430 | 430 | 430 | 430 | 430 | 430 |
| 55 - BB HEIGHT (30-622) | 263 | 263 | 263 | 265 | 265 | 265 |
| 65 - BB HEIGHT (40-622) | 278 | 278 | 278 | 280 | 280 | 280 |
| 76 - BB DROP | 78 | 78 | 78 | 76 | 76 | 76 |
| 87 - WHEELBASE | 1020 | 1030 | 1039 | 1054 | 1063 | 1072 |
| 98 - HEAD ANGLE | 70º | 70.5º | 71º | 71º | 71.5º | 72º |
| 109 - SEAT ANGLE | 74º | 74º | 73.5º | 73.5º | 73º | 73º |
| 1110 - STANDOVER (30-622) | 704 | 731 | 759 | 788 | 815 | 838 |
| 1210 - STANDOVER (40-622) | 718 | 746 | 773 | 803 | 830 | 853 |
| 1311 - REACH | 375 | 382 | 389 | 395 | 402 | 409 |
| 1412 - STACK | 526 | 548 | 570 | 592 | 614 | 636 |
| 1513 - FORK LENGTH | 390 | 390 | 390 | 390 | 390 | 390 |
| 16TRAIL (30-622) | 66 | 62 | 59 | 59 | 56 | 53 |
| 17TRAIL (40-622) | 71 | 68 | 64 | 64 | 61 | 58 |
| Frame Size | Rider Height (in) |
|---|---|
| X-Small | 61.1"-65.4" |
| Small | 65.7"-67.7" |
| Medium | 68.1"-70.5" |
| Large | 70.9"-72.8" |
| X-Large | 73.2"-75.2" |
| XX-Large | 75.6"-81.5" |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
| Frame | Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system |
|---|---|
| Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
| Wheels | Alloy, Tubeless, 700c, 21c, 28h |
| Axles |
Front: Orbea Thru Axle 12x100mm M12x2 P1 Solid Rear: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded |
| Tires | Vittoria Terreno Dry Gravel 700x38c |
| Crankset | Shimano GRX RX600 40t |
| Shifters | Shimano ST-RX600 |
| Rear Derailleur | Shimano RX812 GS |
| Brakes | Shimano RX400 Hydraulic disc |
| Handlebars | OC Gravel GR31-R, Rise 15, Reach 70, Drop 110 |
| Stem | OC Road Performance RP21, -6º |
| Headset | FSA 1-1/2" Integrated Aluminium Cup |
| Seatpost | Carbon, 27.2mm, Setback 20 |
| Saddle | Prologo Akero AGX STN size 155mm |
| Pedals | Sold separately |
* Subject to change without notice.
